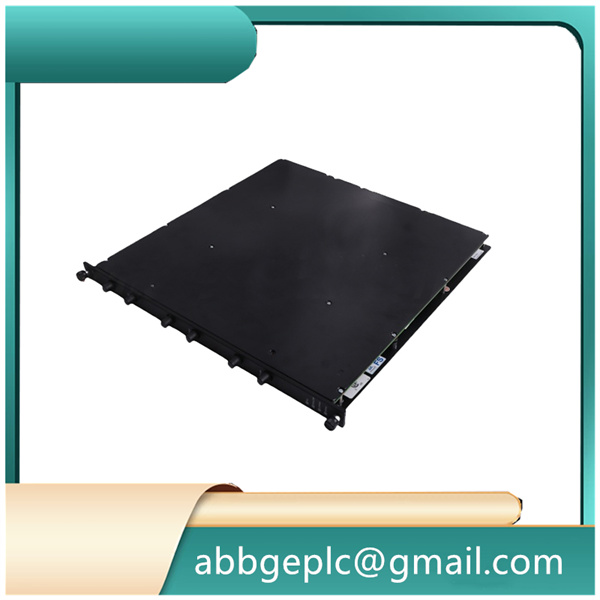

3481 Triconex Relay Output Module

TRICONEX 3481Product Introduction
Brand: Triconex (Schneider Electric)
Model: 3481
Product Name: Relay Output Module
Origin: United States
HS Code: 85389000
Dimension: 342 mm × 31 mm × 262 mm
Weight: 0.53 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Rated Supply Voltage: Backplane 5 V DC
Rated Operating Current: 450 mA @ 5 V DC

Relative Humidity: 5% to 95%, non-condensing
Ingress Protection: IP20 for cabinet installation
TMR controlled dry relay contact outputs
Relay contacts isolated from internal circuit
Contacts support both AC and DC load switching
Built-in relay coil and contact fault diagnosis
Front panel LED for relay status
Supports hot swap in redundant rack
SIL 3 applicable for safety trip indication
Each relay has independent contact rating
Supports de-energize to trip safety logic
Compliant with IEC 61508, CE and UL standards
FAQ for TRICONEX 3481
Q1: What is the difference between 3481 relay module and 3201 digital output module?
A1: 3201 is solid-state 24V DC output. 3481 uses dry relay contacts which can switch different external voltage circuits.
Q2: What is the contact load limit of the relay on 3481?
A2: The relay has fixed contact power rating. Exceeding the rated current will damage relay contacts and affect safety function.
Q3: Can 3481 relay output directly drive large contactors?
A3: It is recommended to use the relay to drive a small intermediate coil, and the intermediate relay controls the large contactor.
