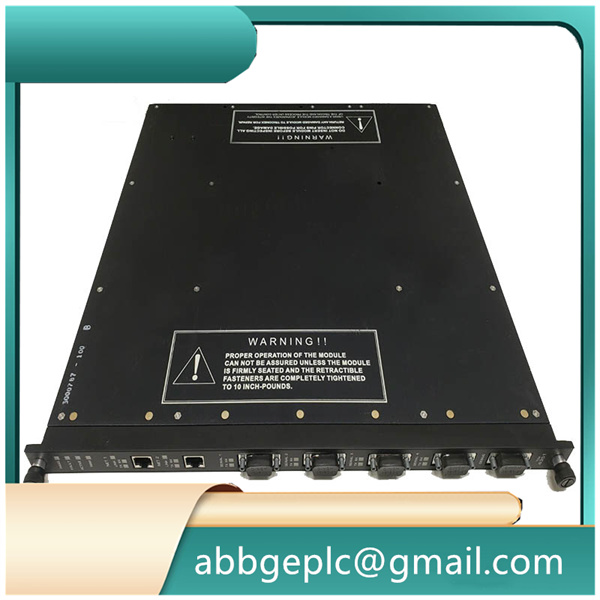

3301 Triconex Analog Input Module

TRICONEX 3301 Product Introduction
Brand: Triconex (Schneider Electric)
Model: 3301
Product Name: Analog Input Module
Origin: United States
HS Code: 85389000
Dimension: 342 mm × 31 mm × 262 mm
Weight: 0.48 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Rated Supply Voltage: Backplane 5 V DC
Rated Operating Current: 400 mA @ 5 V DC
Relative Humidity: 5% to 95%, non-condensing
Ingress Protection: IP20 for cabinet installation

TMR triple redundant analog input channels
Supports 4–20 mA field signal input
Built-in wire break and short-circuit detection for each loop
High precision A/D conversion for process measurement
Supports HART pass-through communication
Front panel channel status LED indicators
Supports hot swap in redundant rack
SIL 3 certified under proper configuration
Signal voting to filter out single channel deviation
Compliant with IEC 61508, CE and UL standards
FAQ for TRICONEX 3301
Q1: Can 3301 read thermocouple or RTD signals directly?
A1: No. 3301 only accepts 4–20mA signals. Temperature sensors need to connect to a temperature transmitter first.
Q2: Does 3301 support HART configuration for field instruments?
A2: It supports HART pass-through. Users can connect HART communicator to configure smart transmitters on the same loop.
Q3: If one analog channel deviates, will the safety system trip immediately?
A3: The system reports a channel mismatch alarm. The safety trip action depends on the configured voting logic and process trip setpoint.
