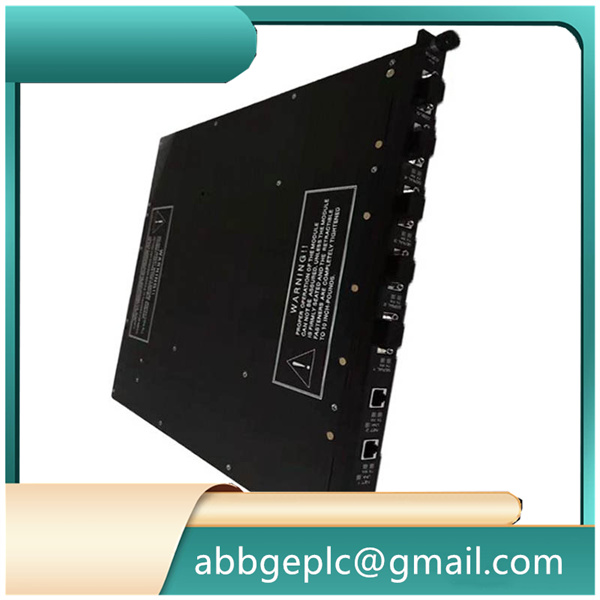

3101 Triconex Digital Input Module

TRICONEX 3101Product Introduction
Brand: Triconex (Schneider Electric)
Model: 3101
Product Name: Digital Input Module
Origin: United States
HS Code: 85389000
Dimension: 342 mm × 31 mm × 262 mm
Weight: 0.47 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Rated Supply Voltage: Powered by backplane 5 V DC, field side 24 V DC
Rated Operating Current: 380 mA @ 5 V DC
Relative Humidity: 5% to 95%, non-condensing
Ingress Protection: IP20 for cabinet installation
TMR triple-channel digital input design
Supports 24 V DC discrete contact input

Built-in open-wire and short-circuit fault detection for each channel
Front panel LED for individual channel status indication
Supports hot swap under redundant rack setup
Signal voting mechanism to reject single-channel fault
Compatible with Tricon v9 series chassis
Supports SIL 3 safety application when properly configured
Backplane isolation between field circuit and safety core
Compliant with IEC 61508, CE and UL certification
FAQ for TRICONEX 3101
Q1: Does 3101 support AC digital input signals?
A1: This standard 3101 model is designed for 24 V DC digital signals. AC input needs to select other corresponding Tricon digital input models.
Q2: Can 3101 work without a Tricon main processor?
A2: No. It must be installed in the Tricon rack and communicate with main processor via the proprietary backplane bus.
Q3: What will happen if one channel of 3101 fails?
A3: The TMR voting algorithm masks the single channel fault, the module continues working and the system reports the fault alarm for maintenance.
