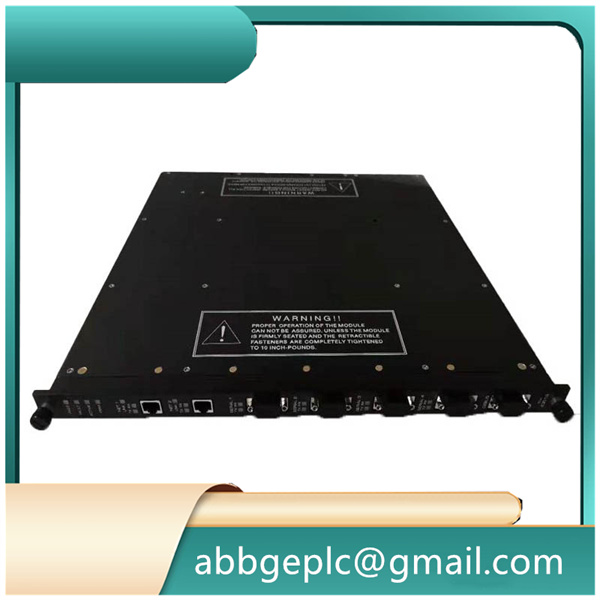

3009 Triconex Communication Processor Module

TRICONEX 3009 Product Introduction
Brand: Triconex (Schneider Electric)
Model: 3009
Product Name: Communication Processor Module
Origin: United States
HS Code: 85389000
Dimension: 342 mm × 31 mm × 262 mm
Weight: 0.49 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Rated Supply Voltage: Powered by Tricon chassis backplane, 5 V DC nominal
Rated Operating Current: 420 mA @ 5 V DC
Relative Humidity: 5% to 95%, non-condensing

Ingress Protection: IP20 for cabinet installation
Dedicated communication co-processor for Tricon system
Supports multiple communication protocol stacks
Isolates safety control network from non-safety host network
Supports hot swap in redundant configuration
Front panel LED indicators for link, activity and fault
Supports peer-to-peer communication between multiple Tricon racks
Supports Modbus TCP, Modbus RTU and OPC communication interfaces
Built-in communication channel diagnosis and error counting
No impact on safety logic execution during communication fault
Compliant with IEC 61508 and CE standards
FAQ for TRICONEX 3009
Q1: Can 3009 run safety control logic?
A1: No. It is only a communication co-processor. Safety logic must run on the main processor module such as 3008.
Q2: How many 3009 modules can be installed inside one Tricon rack?
A2: The quantity depends on chassis slot configuration and project requirement. Normally multiple communication processors can be arranged for different external host interfaces.
Q3: Will communication failure of 3009 trigger safety trip?
A3: Communication loss of 3009 only loses data transmission to upper systems. It will not trigger safety trip action of the Tricon safety logic.
