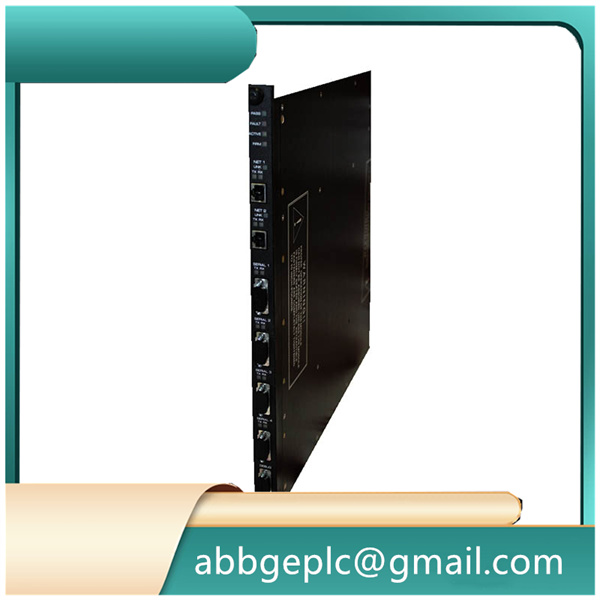

3008 Triconex Tricon Main Processor Module

TRICONEX 3008
Brand: Triconex (Schneider Electric)
Model: 3008
Product Name: Tricon Main Processor Module
Origin: United States
HS Code: 8537101190
Dimension: 342 mm × 31 mm × 262 mm
Weight: 0.52 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Rated Supply Voltage: Powered by Tricon chassis backplane, 5 V DC nominal
Rated Operating Current: 480 mA @ 5 V DC
Relative Humidity: 5% to 95%, non-condensing
Ingress Protection: IP20 for cabinet installation

Triple Modular Redundant (TMR) processing architecture
Supports SIL 3 safety certification
Built-in comprehensive self-test and fault diagnosis
Communicates with I/O modules via proprietary backplane bus
Supports hot swap in redundant rack configuration
Front panel LED indicators for run, fault and communication status
Supports Modbus TCP, Modbus RTU and Tricon peer communication
Firmware upgradable through dedicated software tools
Supports sequence of event (SOE) timestamp recording
Compliant with IEC 61508, ISA S84, CE and UL standards
FAQ for TRICONEX 3008
Q1: What is the core architecture of the 3008 processor?
A1: It adopts triple modular redundant TMR architecture. Three independent processing channels perform the same logic calculation and implement fault voting to avoid single point failure.
Q2: Can the 3008 be mixed with old-generation Tricon processor modules in one rack?
A2: No, the 3008 is designed for Tricon v9 chassis. It cannot work together with earlier Tricon 3006 or 3002 series processors.
Q3: Does the 3008 support online logic modification without shutdown?
A3: It supports online download of logic modifications under pre-approved safety procedures, and the safety function remains active during downloading.
