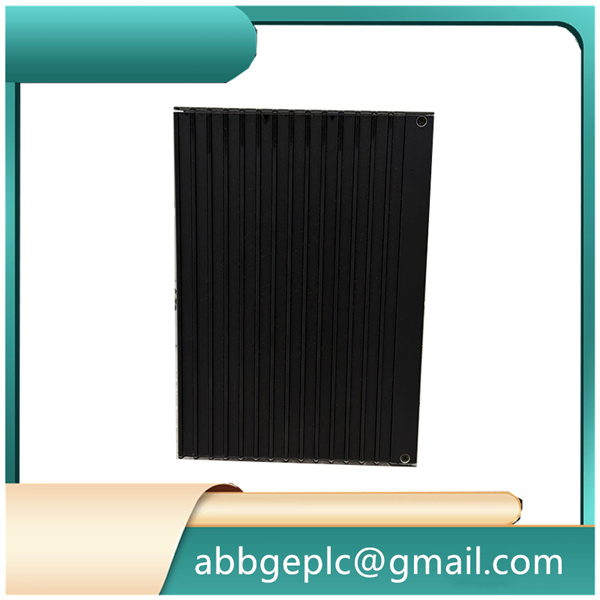

2301 TRICONEX 32-Channel Digital Input Module

TRICONEX 2301 Digital Input Module Product Introduction
Brand: TRICONEX (Schneider Electric);
Model: 2301;
Product Name: 32-Channel Digital Input Module;
Dimensions: 318mm × 172mm × 49mm;
Weight: Approximately 1.22kg;
Place of Origin: USA;
HS Code: 85371011;
Operating Temperature: 0°C ~ +60°C;
Storage Temperature: -40°C ~ +85°C;
Relative Humidity: 5% to 95% RH, non-condensing;

Rated Voltage: 24V DC logic power, field signal 24-48V DC;
Working Current: Max 0.72A;
Power Consumption: 14W;
Input: 32 channels digital contact input, Tricon backplane bus input;
Output: Digital status data output to backplane bus, channel fault alarm output;
Mounting Type: Tricon chassis rack mounting;
Protection Class: IP20;
Features: 32 high-density DI channels, TMR triple voting, per-channel wire break/short detection, hot swappable, surge protection;
Functions: High-density discrete signal collection, valve and switch status monitoring, signal voting validation, wiring fault diagnosis, transmit safety status data to Tricon safety processor.
