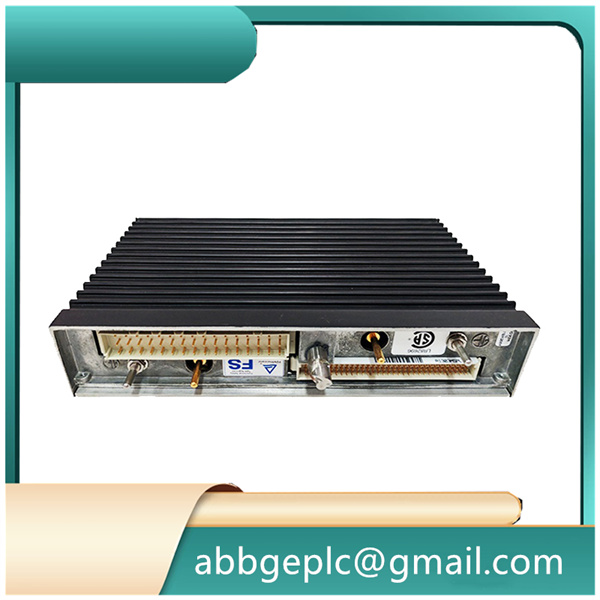

2101 TRICONEX Main Processor Module

TRICONEX 2101 Main Processor Module Product Introduction
Brand: TRICONEX (Schneider Electric);
Model: 2101;
Product Name: Main Processor Module;
Dimensions: 330mm × 178mm × 55mm;
Weight: Approximately 1.42kg;
Place of Origin: USA;
HS Code: 85371011;
Operating Temperature: 0°C ~ +60°C;
Storage Temperature: -40°C ~ +85°C;
Relative Humidity: 5% to 95% RH, non-condensing;

Rated Voltage: 24V DC;
Working Current: Max 1.0A;
Power Consumption: 20W;
Input: Tricon backplane bus input, 24V DC power input, I/O signal input;
Output: Backplane control output, communication data output, fault alarm relay output;
Memory: 16MB RAM, 8MB Flash memory;
Mounting Type: Chassis rack slot mounting;
Protection Class: IP20;
Features: Triple Modular Redundant (TMR) voting, hardware watchdog, full self-diagnosis, hot swap support, redundant processor backup, non-volatile event storage, high EMC immunity;
Functions: Execute safety control logic, ESD emergency shutdown control, I/O data processing, PID safety regulation, system fault diagnosis, event log recording, communicate with I/O modules and upper HMI/SCADA.
